MATERIALS SUPERMARKET DESIGN

warehouse layout

SERVICE AREA:

• Plant Layout Development

• Material Flow Analysis

IMEG was hired by a solenoid manufacturer to design and optimize a 53,000 square foot central materials supermarket for stock.

THE PROBLEM

THE PLAN

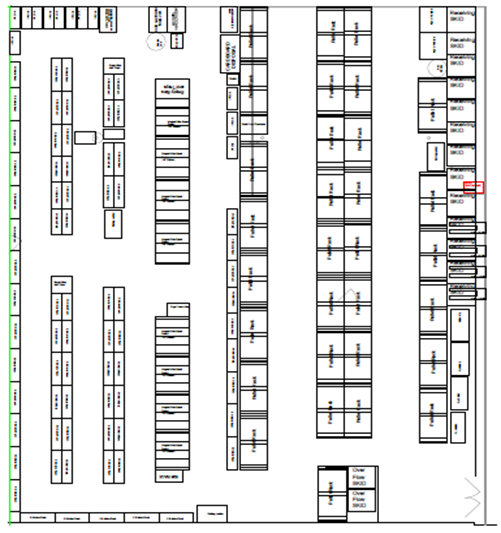

Develop proposed supermarket layout designs in AutoCAD

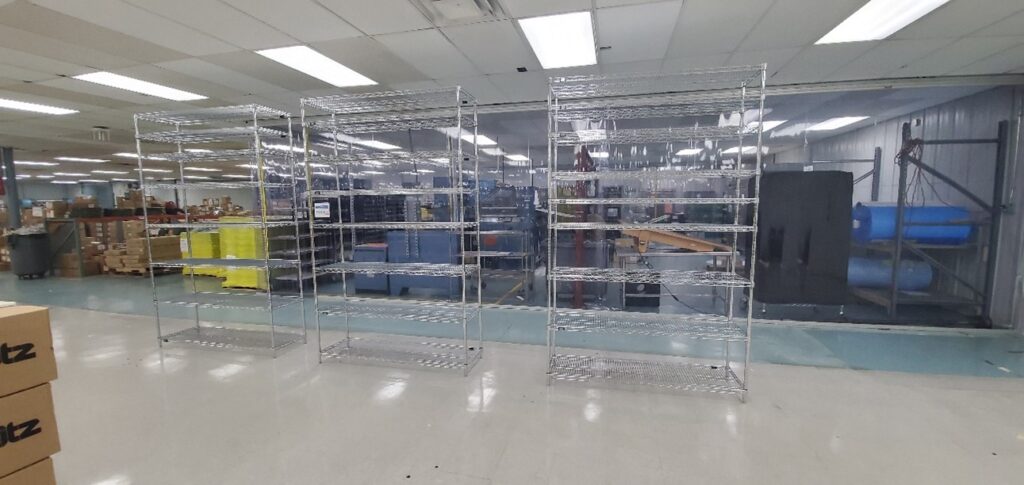

Analyze wire shelving rack design
Evaluate layout designs based on travel distance, floor space, safety, and cost to implement
Reuse as many existing materials and equipment possible to reduce cost
Develop relocation schedule for all material markets and departments

rack layout, plant layout

THE RESULTS

warehouse layout

Opened over 1,700 square feet of floor space while reducing required floor space for storage by 25%
Utilized 38% more vertical space
Optimized 3 standard shelving rack layouts to maximize shelf utilization for material storage
Kept implementation cost to $41,000

autocad layout development
